Latest model 12.3 MP

Optomed Lumo

Retinal imaging with flawless usability and powerful diagnostics. Ready for any clinical scenario.

High-resolution CMOS sensor for precise retinal imaging

Wide-field imaging without pupil dilation

Connect to hospital PACS systems and cloud AI analytics

Data encryption, two-factor authentication, and PIN protection

Applications

A versatile solution

From clinical diagnostics to mass screening — Lumo adapts to your needs.

Precise retinal imaging in the ophthalmologist's office

Child-friendly examination without pupil dilation

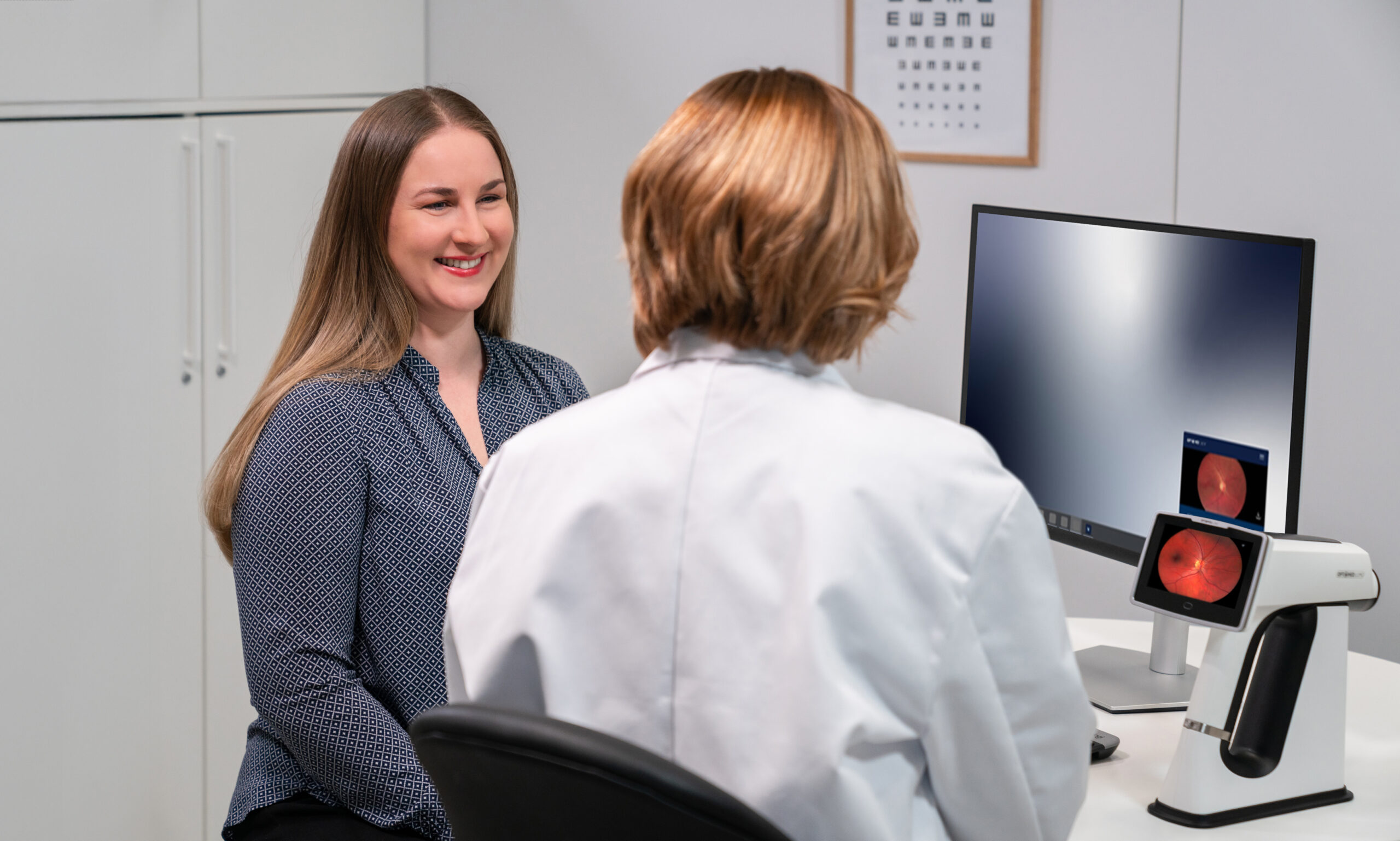

Large-scale population eye health screenings

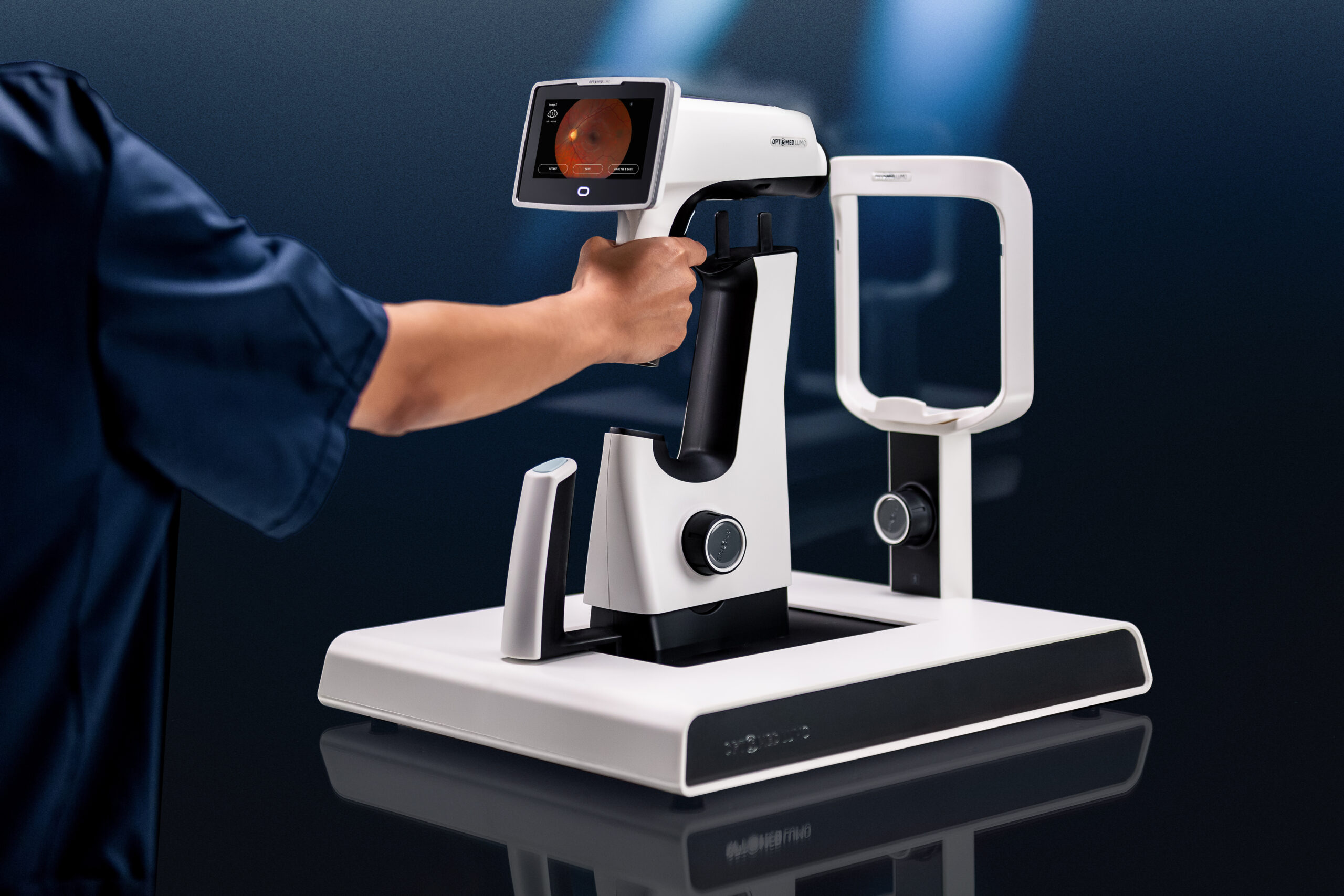

Stationary use with the Desktop Base accessory

Technical data

Type	Non-mydriatic digital fundus camera
Field of view	50 degrees (total 50 x 40 degrees)
Sensor resolution	12.3 MP
Optical resolution	> 60 lp/mm (ISO10940:2009)
Fixation targets	9 pcs
Minimum pupil size	3 mm
Illumination	IR LED (targeting); White LED (imaging)
Display	5" TFT-LCD, 1280x720 px, touchscreen
Internal memory	16 GB
File format	JPEG
Data transfer	DICOM, DICOMweb
Exposure	Automatic / manual
Diopter compensation	-20 D to +20 D (manual); -15 D to +10 D (autofocus)
Photography type	Color, Red-Free
Security	PIN; Two-factor authentication; AES-256 encryption
Connectivity	WLAN (2.4 GHz & 5 GHz, WPA2); USB-C
Software	Optomed Client (Windows, Android, macOS, iOS, iPadOS)
Additional services	Optomed Portal; Cloud AI service
Battery	7.2 V / 3450 mAh / 24.84 Wh (Li-Ion)
Battery life	6 hours*
Spare battery charge time	2 hours
Dimensions	141 (w) x 200 (h) x 240 (d) mm
Weight	930 g
Warranty	2 years (excluding batteries)

* Battery life: 4 patients per hour, 4 images per patient, camera in standby mode between patients.

CE MDR Class IIa

FDA PJZ

AI Built-in Integration
